NETGEAR Gigabit Ethernet Switch 5xRJ45 10/100/1000 5port Lifetime Warranty (EN)

Etusivu Verkko Kytkimet NETGEAR Gigabit Ethernet Switch 5xRJ45 10/100/1000 5port Lifetime Warranty (EN)
Hinnat näkyvät vain verkkokauppaan kirjautuneille käyttäjille.
NETGEAR Gigabit Ethernet Switch 5xRJ45 10/ 100/ 1000 5port Lifetime Warranty (EN) (GS105GE)

NETGEAR Gigabit Ethernet Switch 5xRJ45 10/100/1000 5port Lifetime Warranty (EN)

Tuotekoodi:
GS105GE
EAN:
0606449029673
Ammattilaisten arvostelut: 3 arvostelua
  • Tuote Hallitsematon kytkin
  • Portit 5
  • Nopeus 1Gbps
Saatavilla arviolta 7.11.2024
Kuvaus

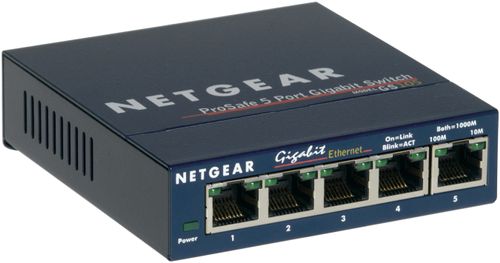

ProSafe™ 5 Port Gigabit Desktop Switch

Model GS105


Key Benefits

  • Five 10/100/1000 Mbps Ethernet ports
  • High-speed, auto-sensing, full-duplex connections
  • Sturdy, space-saving form factor
  • Supports PC or Macintosh® O/S
  • Silent operation for a peaceful work environment

Gigabit Power, 10/100 Simplicity
For a high-speed network on a small scale, nothing delivers likes these compact powerhouses. Equipped with up to eight auto-speed-sensing 10/100/1000 Mbps UTP ports, these affordable switches give your network the capacity to handle huge workloads. If your network is configured to support Jumbo Frames, ProSafe GS100 switches will forward them, as well as honoring priority tags at both the layer 2 and layer 3 level. This means they moves very large files across your network instantly, and keep the high priority traffic moving. Packed with ease-of-use features to simplify your networking experience, its trim design makes it an easy fit for a desk or mounted on a wall. The durable metal chassis protects interior working parts and the fan-less design results in silent operation. Matched with NETGEAR’s thorough testing, the ProSafe GS100 switches provide long-lasting performance you can count on.

Potent
Moves huge files fast! Features up to eight high-speed, auto-switching 10/100/1000 Mbps Ethernet connections. And because Gigabit Ethernet is a full duplex standard, you get up to 2000 Mbps on each port. The GS100 Series provides Jumbo Frame support up to 9,000 byte frames.

Capable
Integrates 10, 100, and 1000 Mbps devices on the same network. Every port automatically senses the right speed and full/half duplex mode, and Auto Uplink™ technology automatically adjusts for straight-through or crossover cables.

Trim
Sized to save space, this sturdy metal switch is compact and fits easily on a desk or mounts on a wall, making it ideal for home and small office environments.

Easy-going
LEDs embedded in RJ-45 jacks make for easy monitoring. Provides noiseless operation. Supports PC or Mac® O/S (operating system).

Technical Specifications

Network Ports
· 5 auto-speed-sensing UTP ports

Forwarding Mode
· Store-and-Forward
· 128K On-Chip Packet Buffering

Performance
· Bandwidth: 10 Gbps (non-blocking)
· Forward rate (10 Mbps port): 14,800 packet/sec
· Forward rate (100 Mbps port): 148,000 packet/sec
· Forward rate (1000 Mbps port): 1,480,000 packet/sec
· Network Latency (100 to 100 Mbps): 20 µs (max)
· Network Latency (1000 to 1000 Mbps): 10 µs (max)
· Queue Buffer Memory: 12 kbytes per port
· MAC addresses: 4,000
· Mean Time Between Failure (MTBF): 91,500 hours (~10 years)

Status LEDs
· System power per port: Link, speed and activity

AC Power
· 12 W
· 12VAC, 1A

Physical Specifications
· Dimensions (w x d x h): 93 x 105 x 27 mm (3.7 x 4.1 x 1.1 in)
· Weight: 300g (0.66lb)

Environmental Specifications
· Operating Temperature: 0 to 50º C (32 to 122º F)
· Operating humidity: 10 to 50º C noncondensing

Storage Specifications
· -20 to 70° C (-4 to 158º F)
· 10 to 95% Relative Humidity
Standards Compliance
· IEEE 802.3i 10BASE-T Ethernet
· IEEE 802.3u 100BASE-TX Fast Ethernet
· IEEE 802.3z 1000BASE-T Gigabit Ethernet
· IEEE 802.3x Full-duplex Flow Control
· IEEE 801.p priority tags
· DSCP priority tags
· Jumbo Frame support (9,000 byte)
· Windows®, MAC OS, NetWare®, Linux®

Safety Agency Approvals
· UL (UL 60950)
· CUL
· C-Tick
· CE Mark
· licensed (EN 60950)

Emissions
· FCC Class A and VCCI Class A
  CE Class A

System Requirements
· UTP Category 5 or better cables
· Network card for each PC or server

Warranty
· Switch: NETGEAR 5 year warranty
· Power adapter: NETGEAR 2 year warranty

Package Contents
· 5 Port Gigabit Ethernet Desktop Switch 10/100/1000 GS105v2
· Wall-mount kit
· Power adapter
· Installation guide
· Warranty & Support information card

This is version 2 of the GS105 product, which started shipping in March of 2006.
